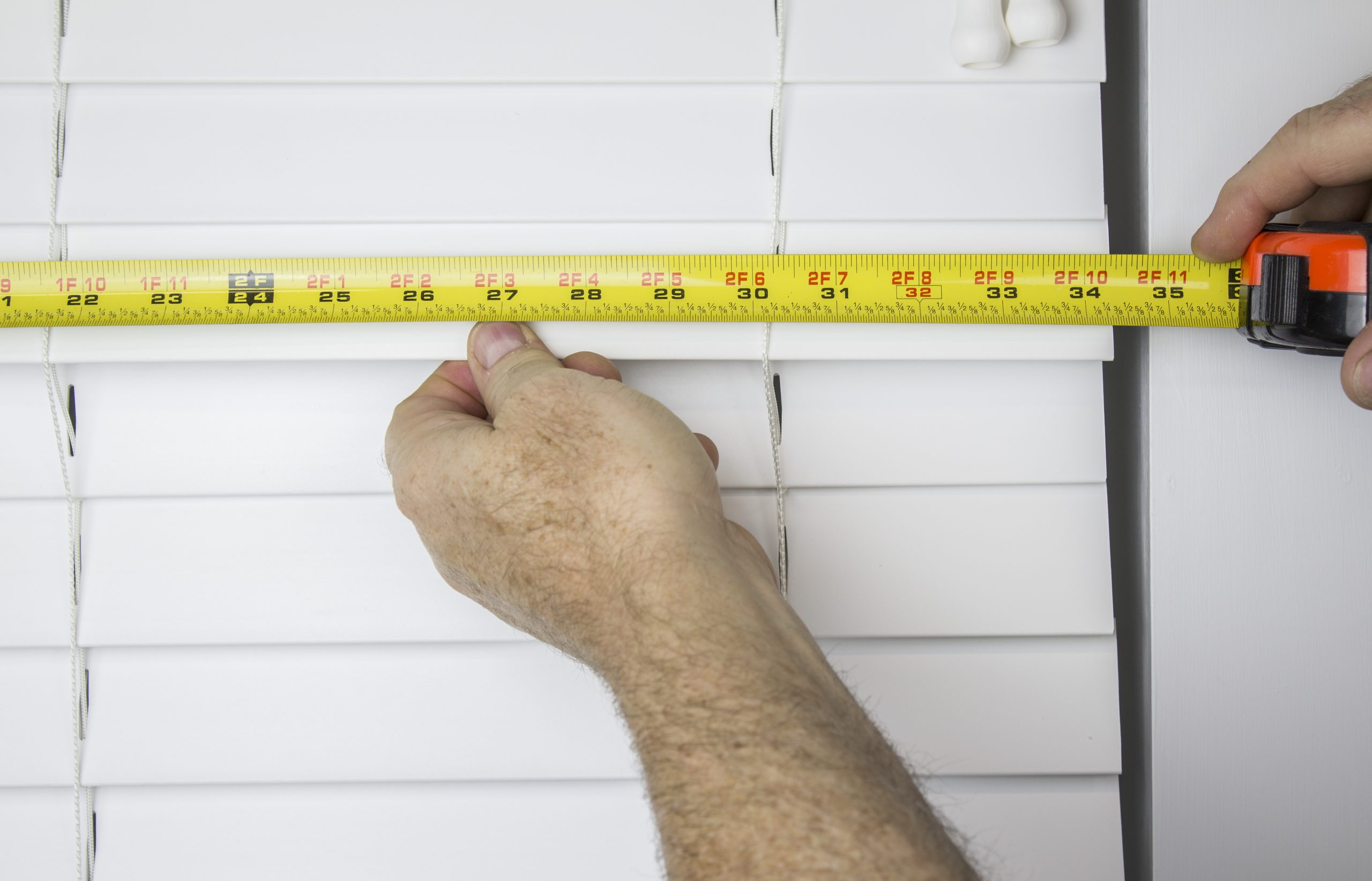

Measure from the left the width fo the slat to the nearest 1/16". (write down measurement)

1. Measure from left the width of the slat to the nearest 1/16″. (write down measurement)

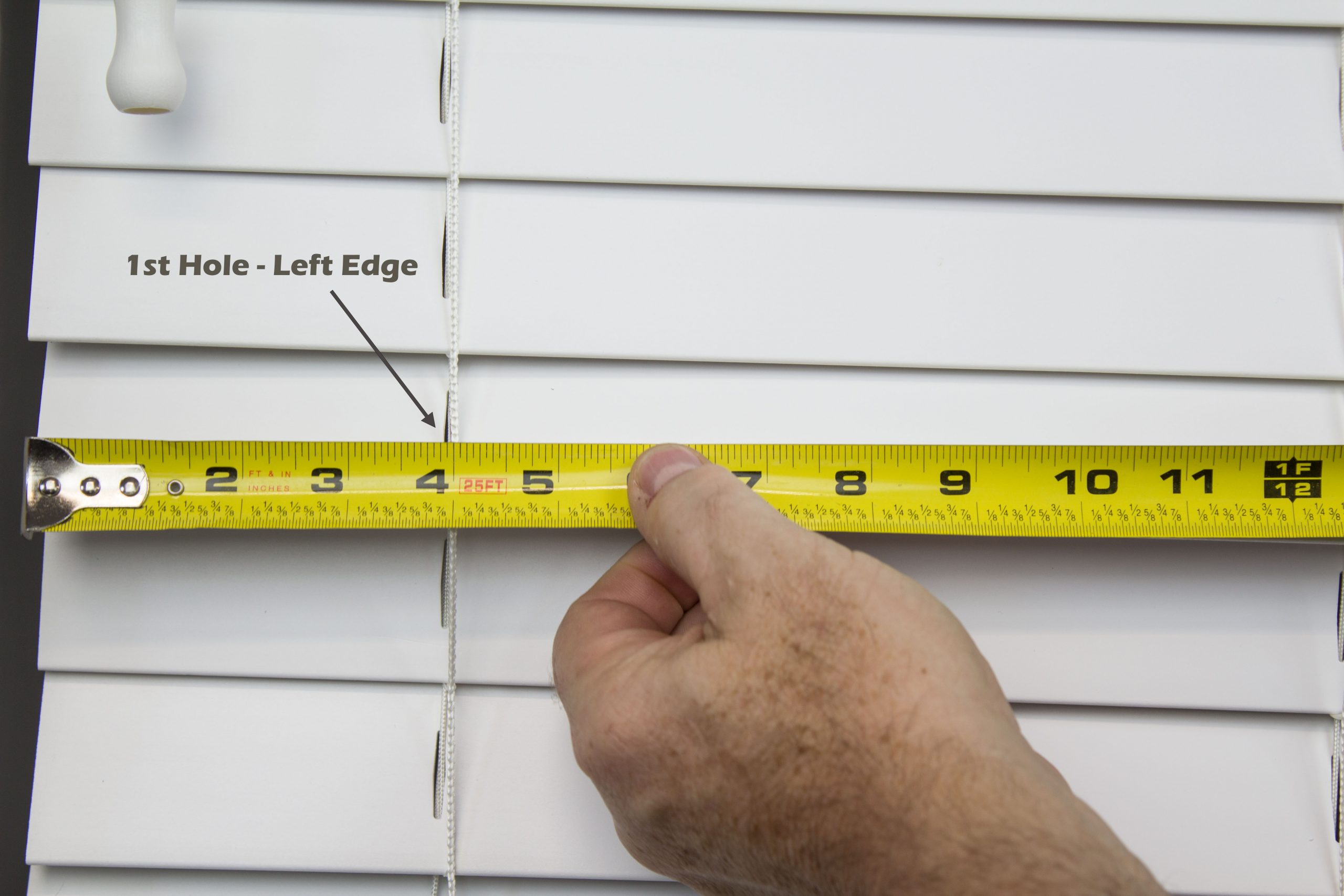

1. Measure from left to the left edge of the first route hole to the nearest 1/16”. (write measurement down)

2. Measure from left to the left edge of the first route hole to the nearest 1/16”. (write measurement down)

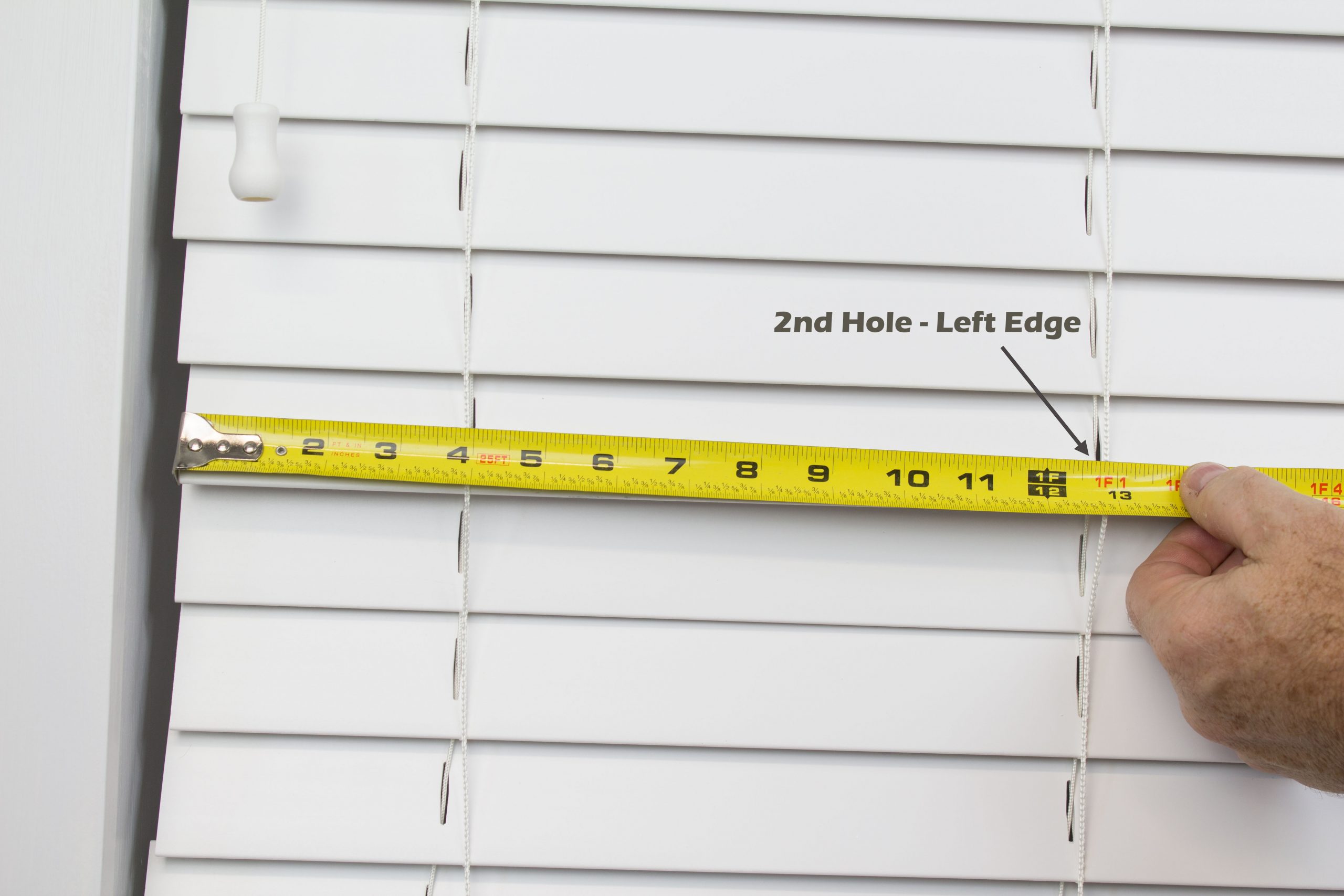

2. Measure from left (edge of slat) to the left edge of the second route hole to the nearest 1/16”. (write measurement down)

3. Measure from left (edge of slat) to the left edge of the second route hole to the nearest 1/16”. (write measurement down)

Measure any additional route holes in order and the same way (if necessary).

All route holes are measured from the left edge of the slat – DO NOT measure between route holes.

General instructions for common wood or faux wood blinds. Your product may be different, but the same basic techniques should apply.

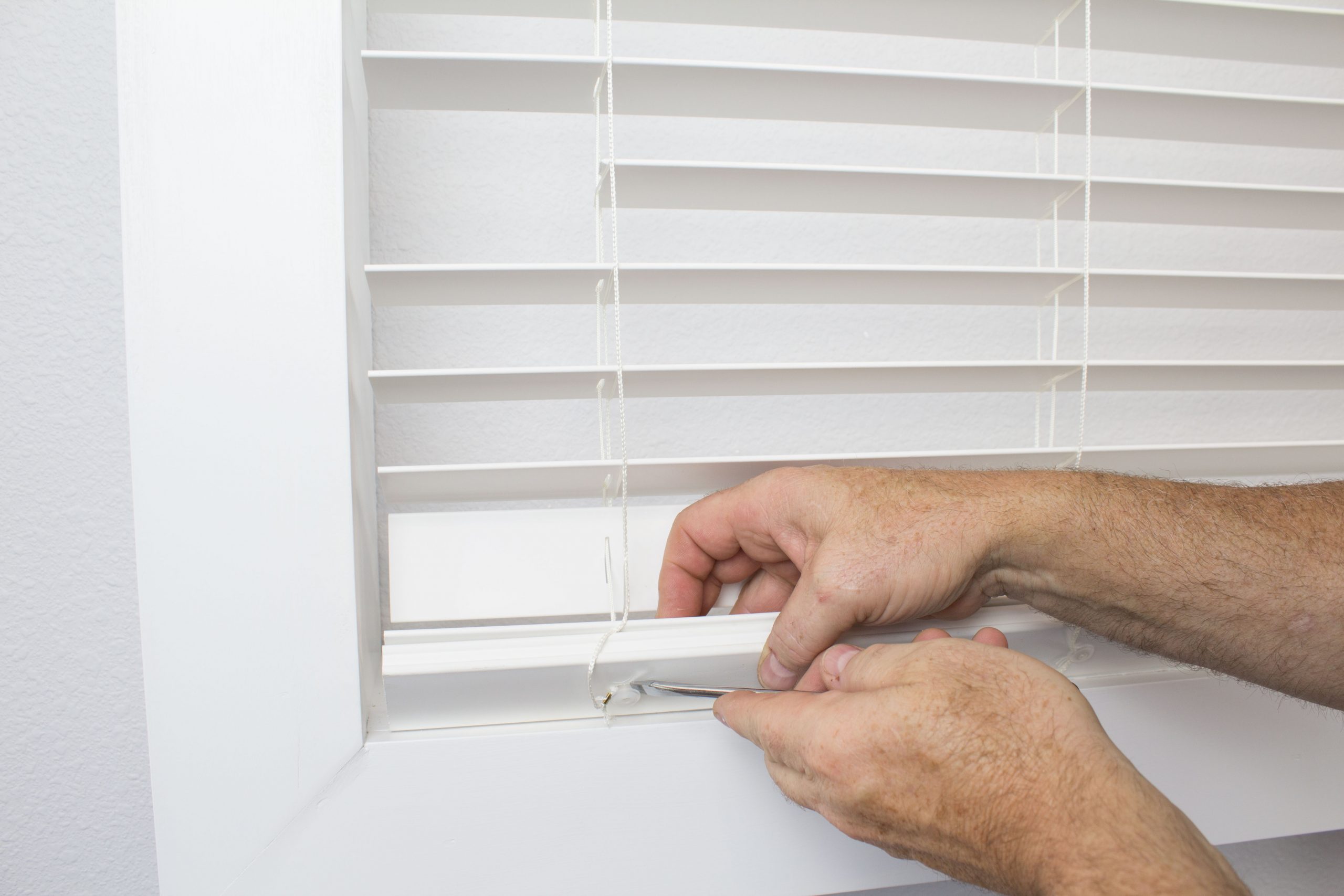

Pull lift string out with pliers and remove knot.

1. Carefully remove bottom button to expose lift string. (if needed – some buttons do not need to be removed)

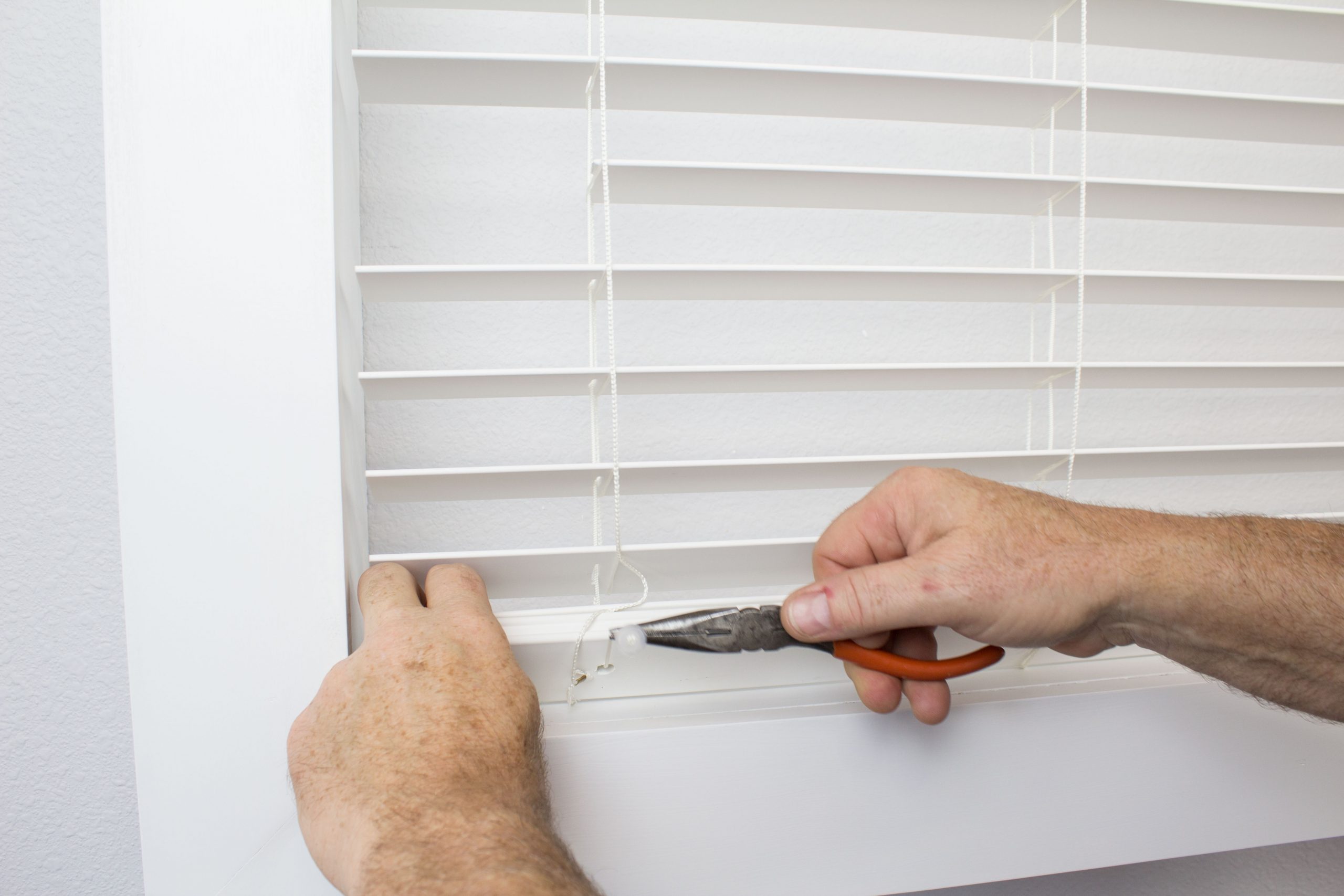

Pull lift string out just above the slat(s) to be replaced. (repeat this process for all other lift strings)

2. Pull lift string out with pliers and remove knot.

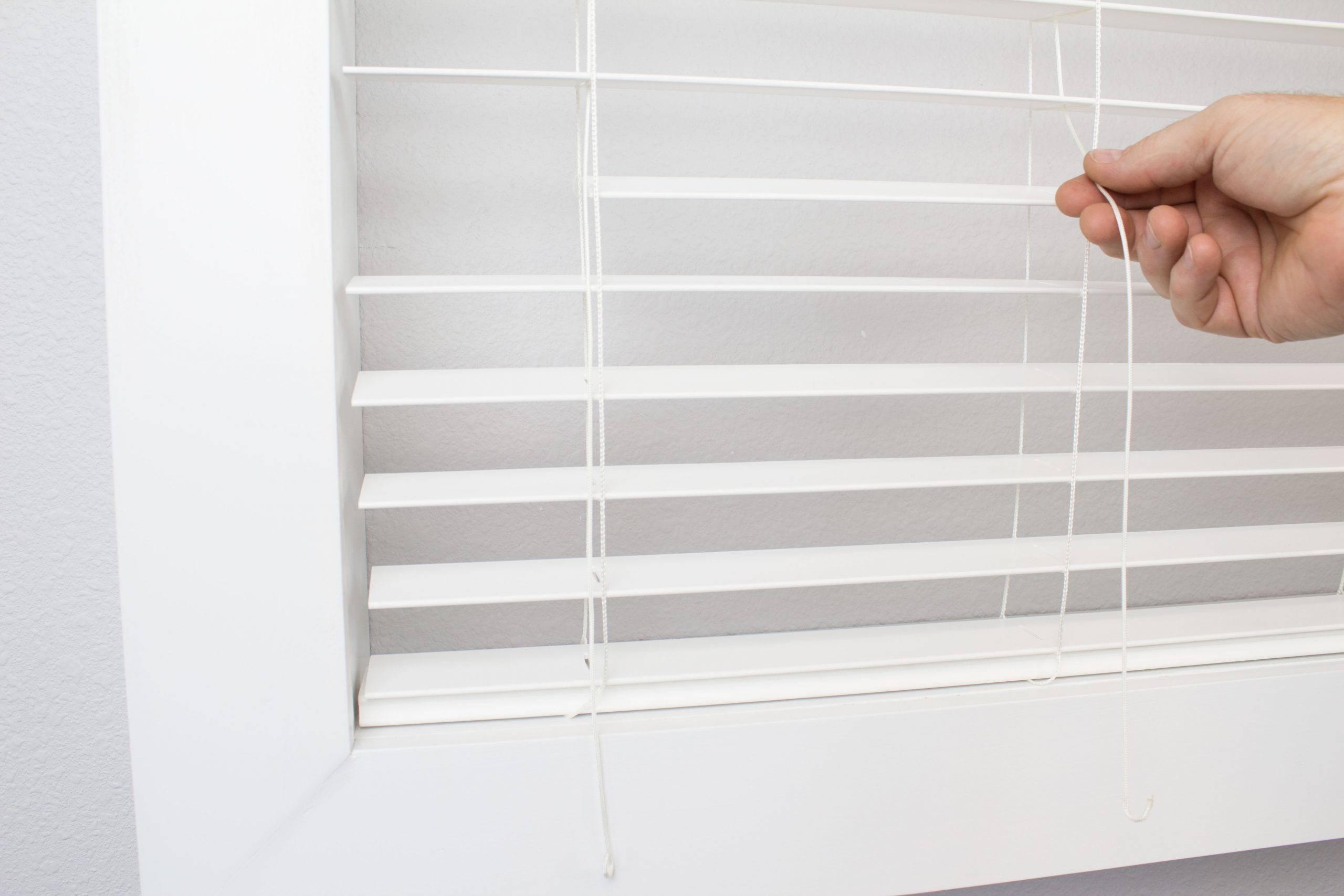

Replace the slat(s).

3. Pull lift string out just above the slat(s) to be replaced. (repeat this process for all other lift strings)

4. Replace the slat(s).

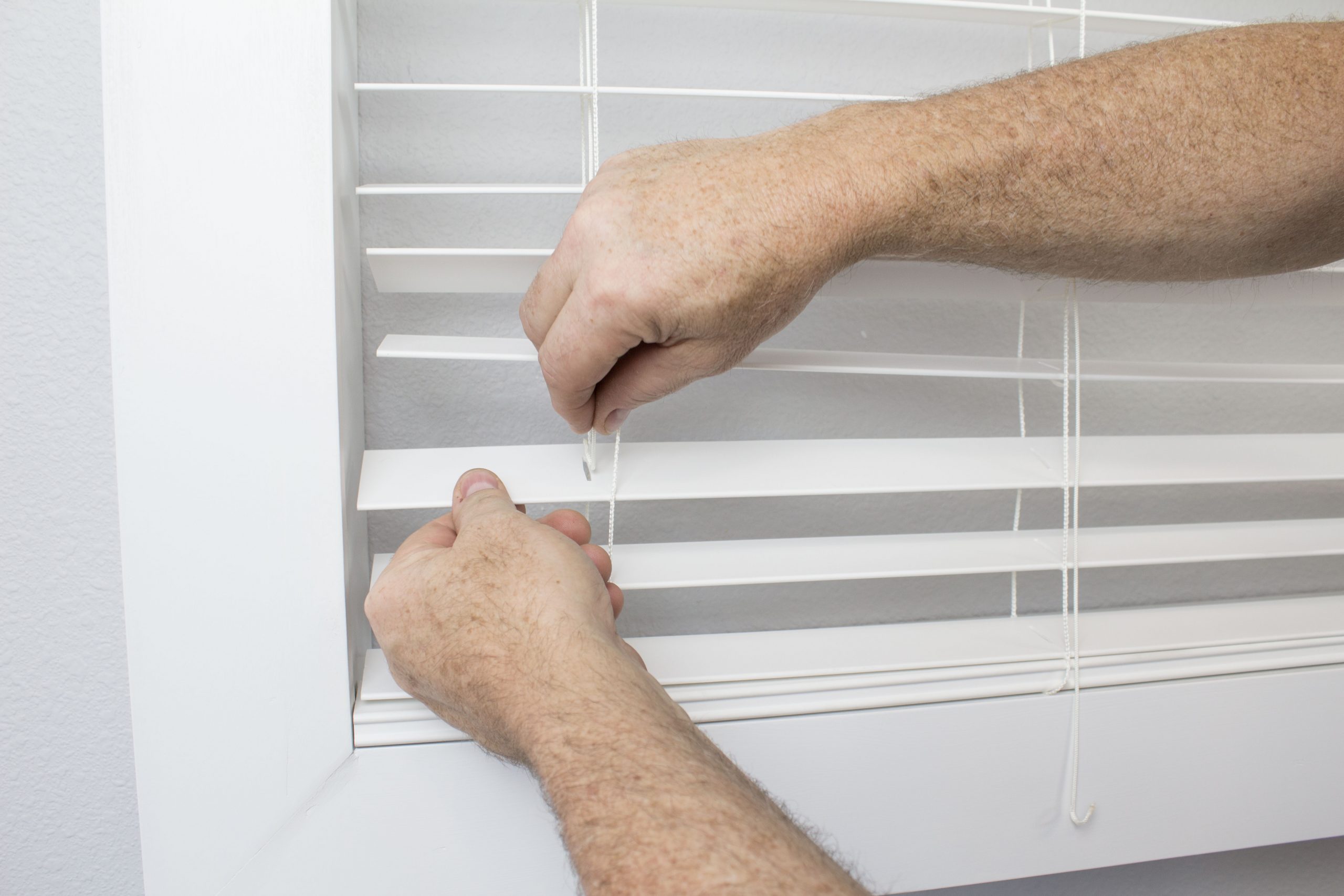

Rethread the lift string down through the slats and tie off.

5. Rethread the lift string down through the slats and tie off.

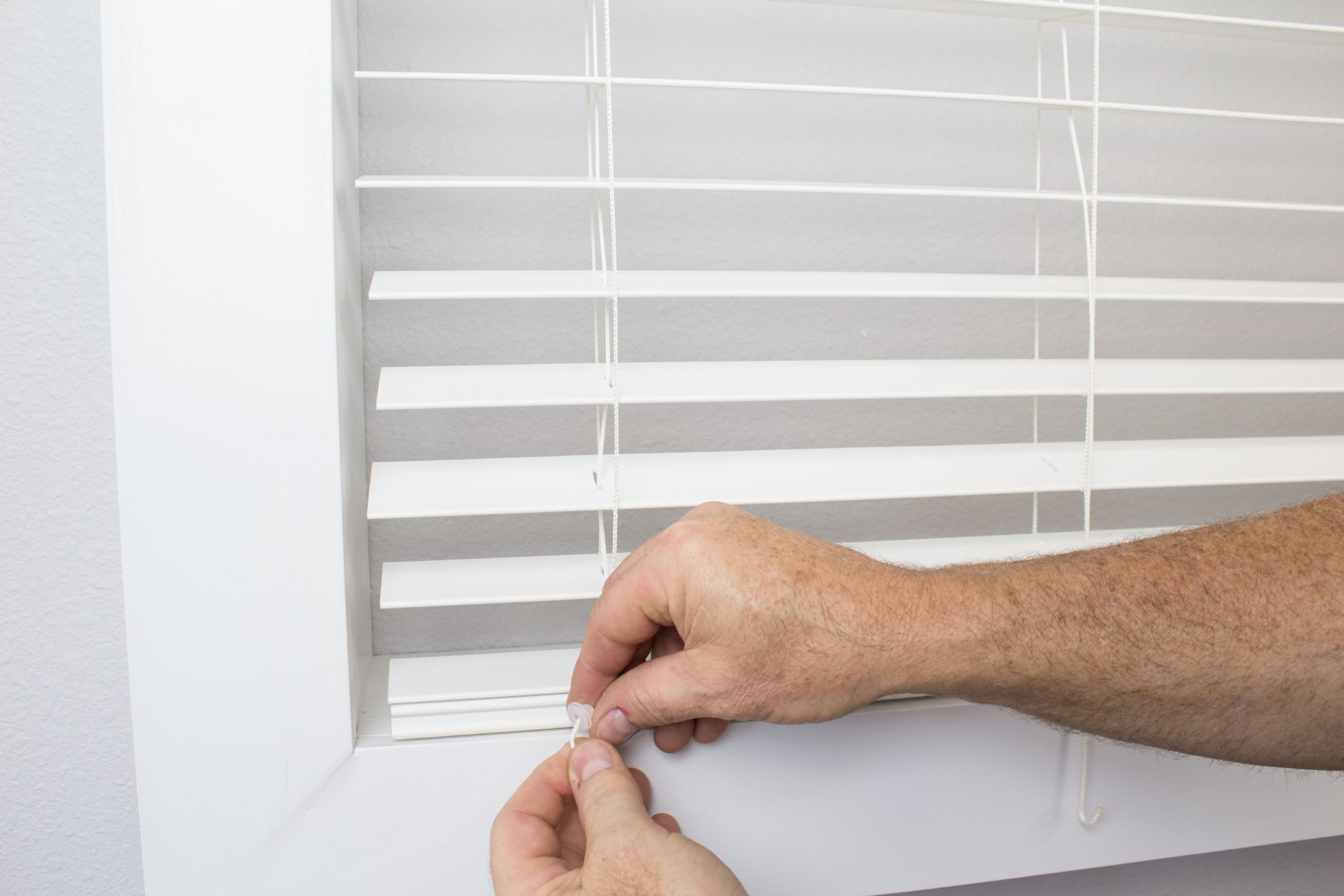

Replace bottom buttons. (if applicable)

6. Replace bottom buttons. (if applicable)

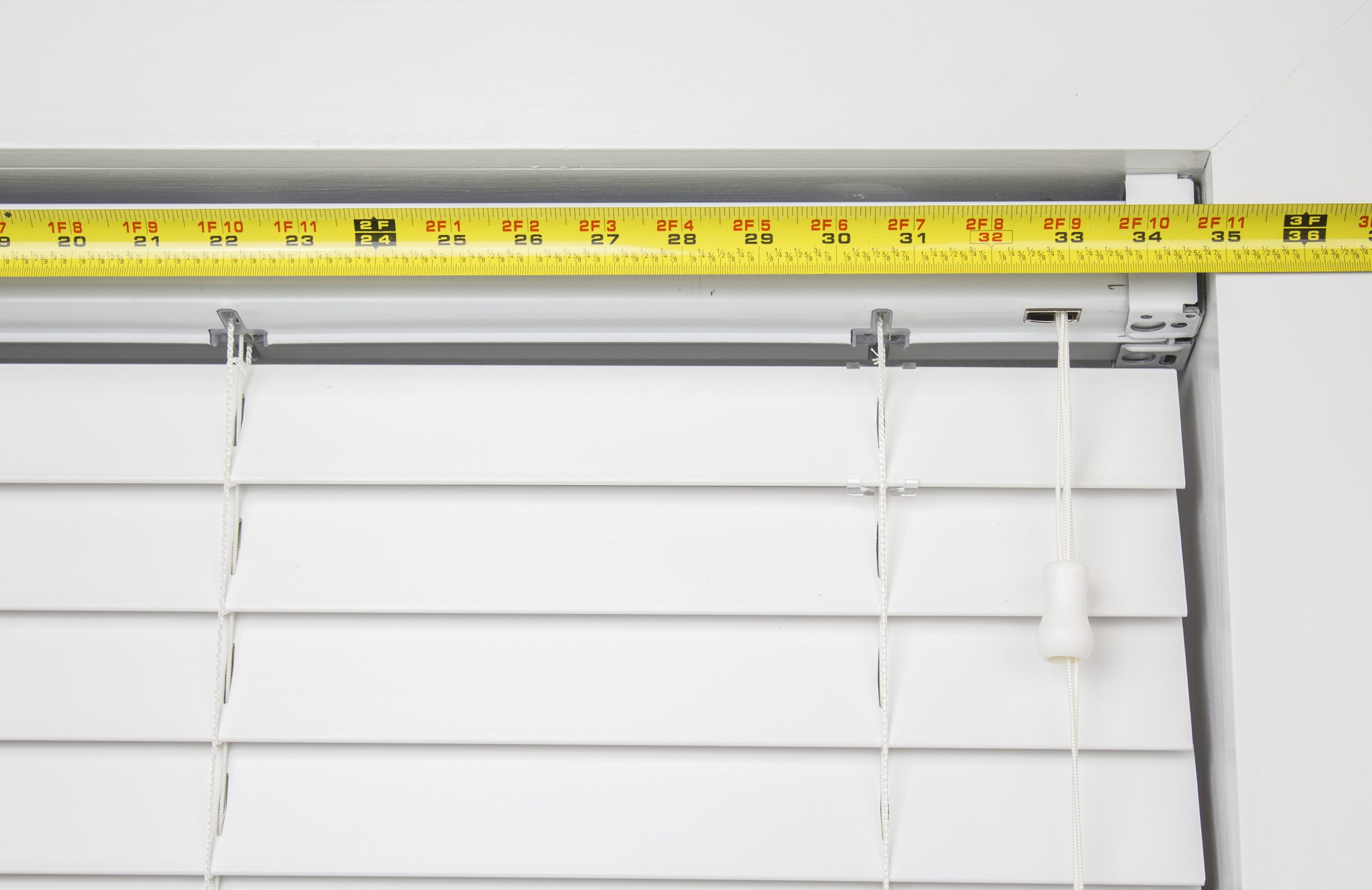

Measure down to the 1/8”

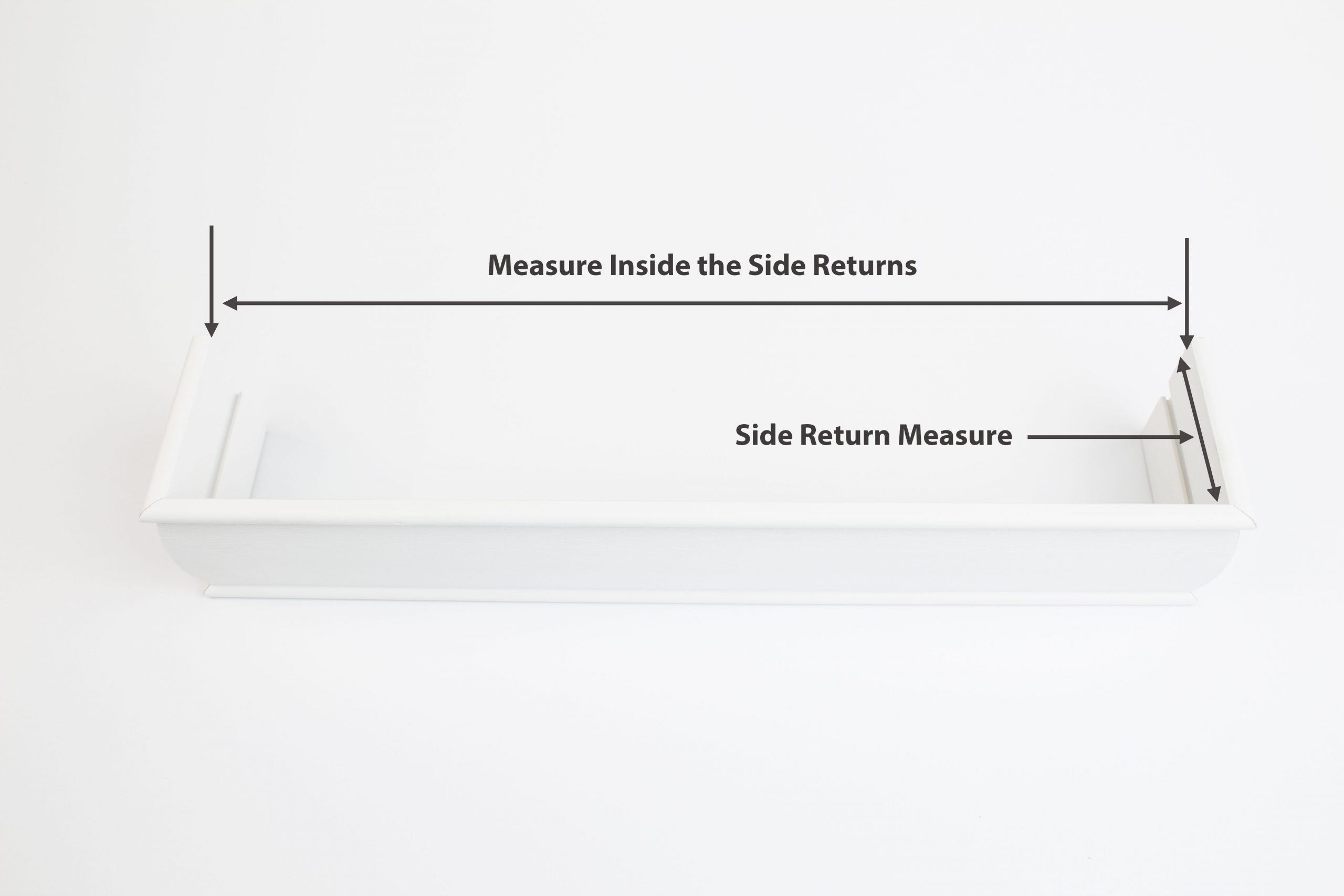

1. Measure width, subtract an additional 1/4” to fit inside frame.

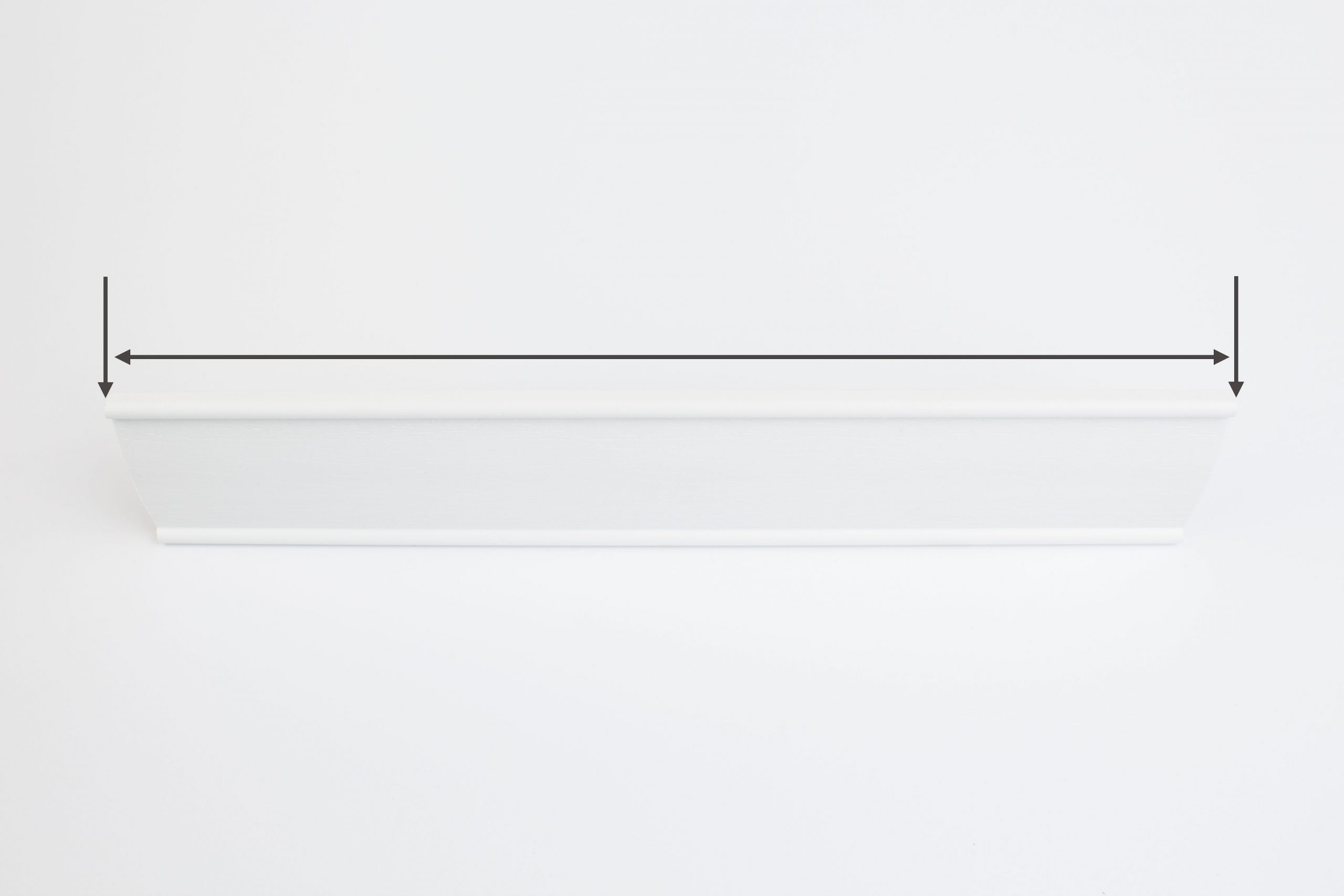

Subtract an additional 1/4” to fit inside frame

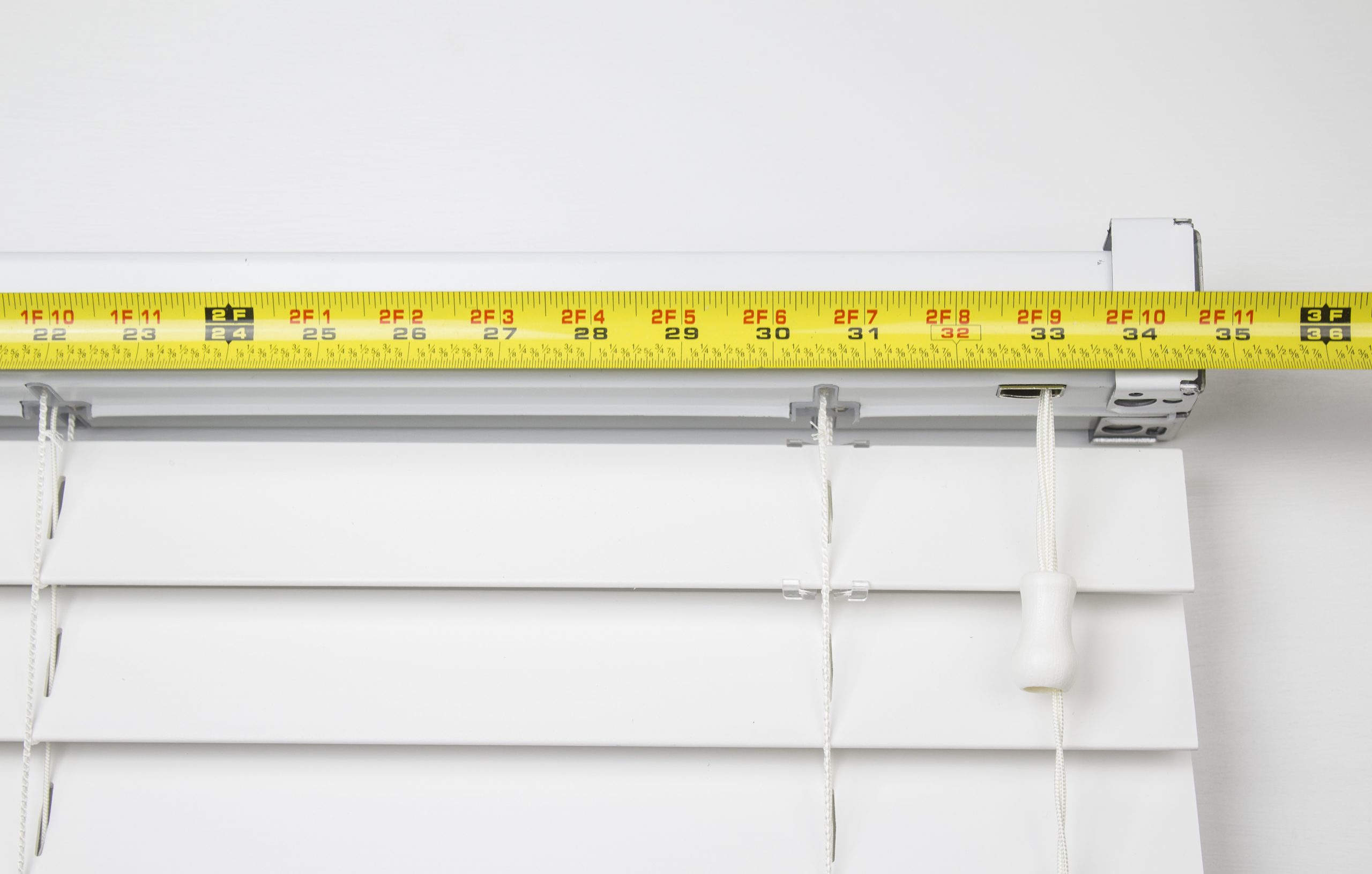

1) Measure up to the 1/8” 2) Add ½” for outside clearance

1. Measure up to the 1/8”.

2. Add 1/4″ each side (1/2″ total) for outside clearance.

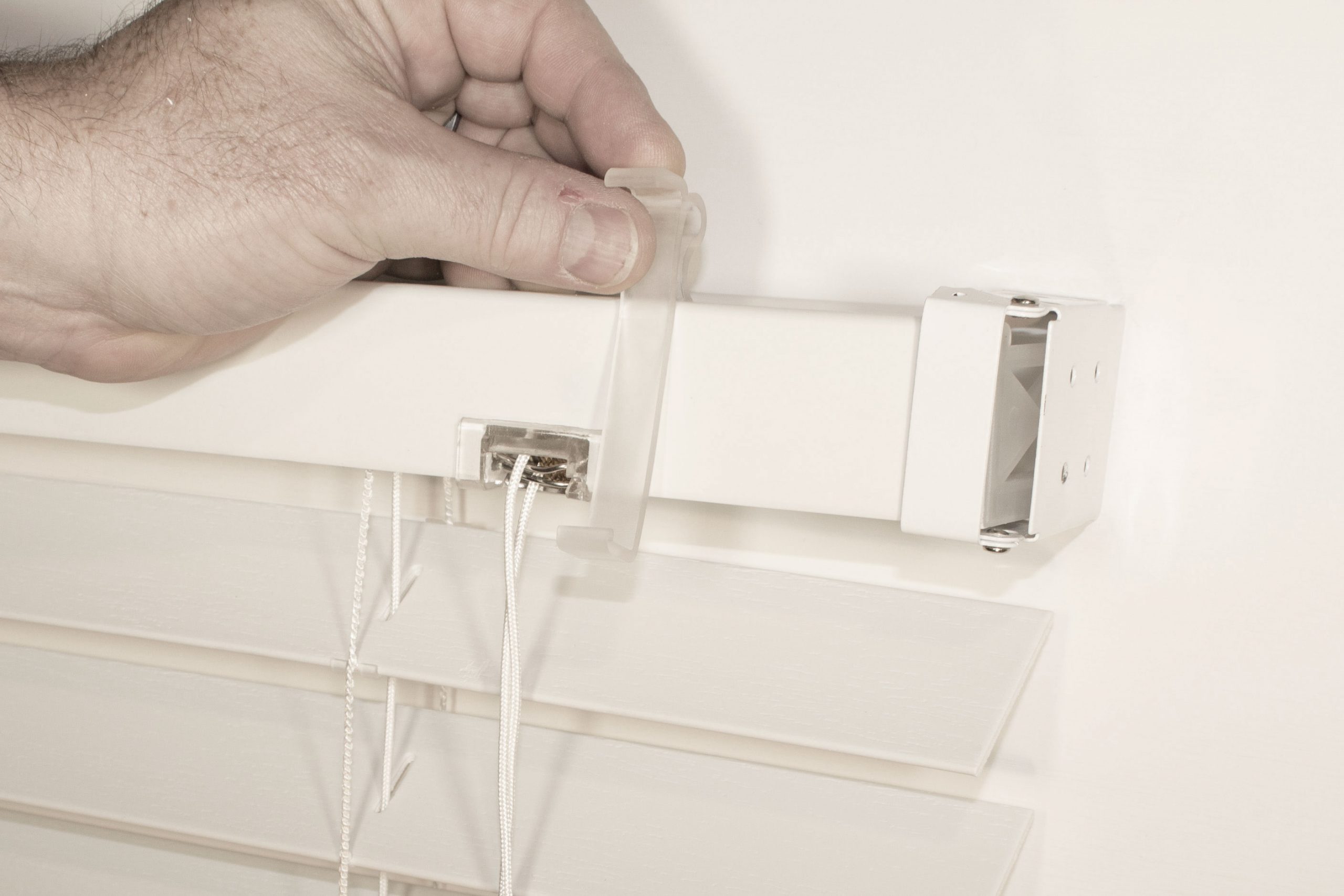

Snap clip on headrail. (remove blind first if inside mount)

1. Snap clip on headrail. (remove blind first if inside mount)

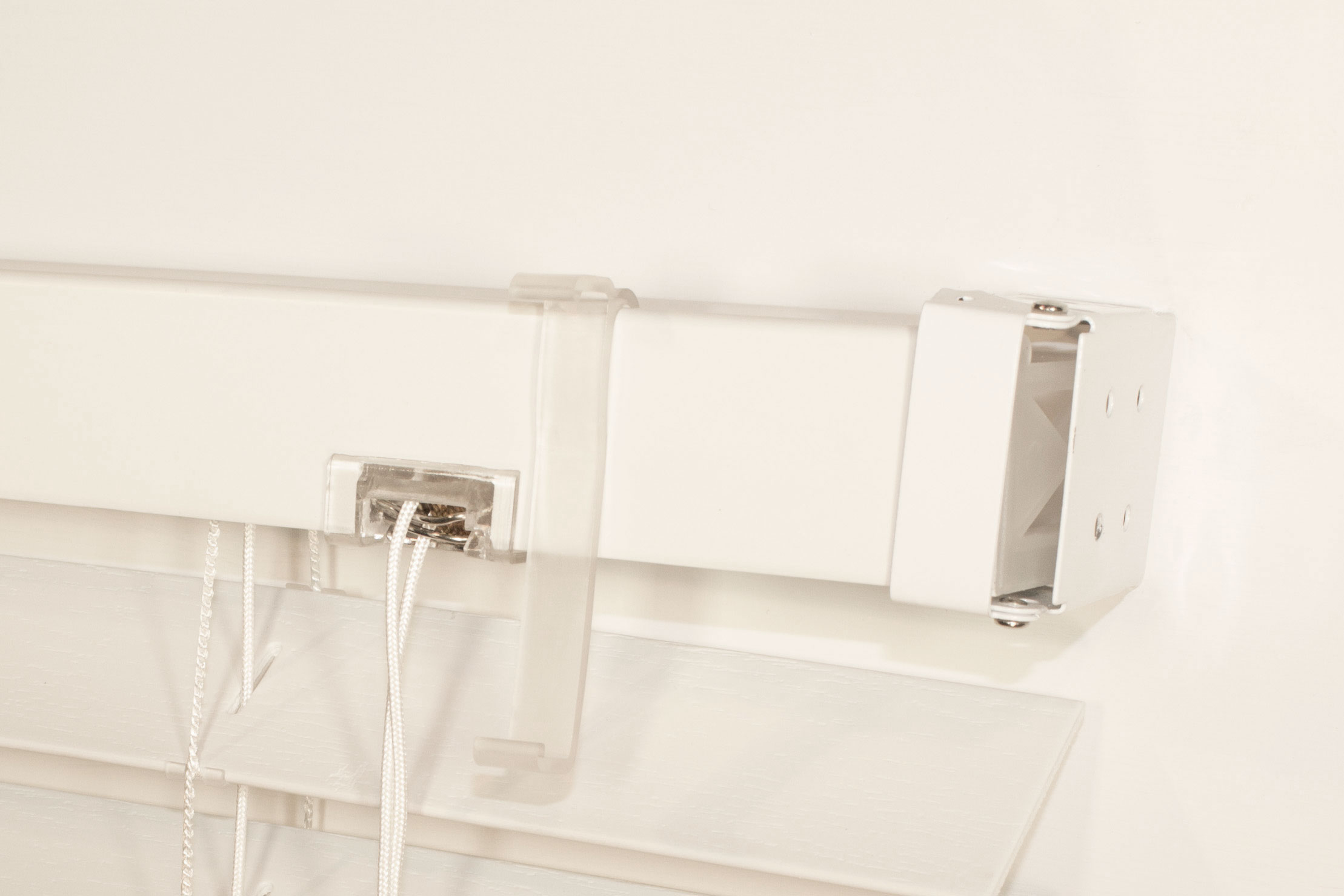

Mount (1) clip near each end, and (1) every 3’ intermittently. (if blind was removed - remount now)

2. Mount (1) clip near each end, and (1) every 3′-4′ intermittently. (if blind was removed – remount
now)

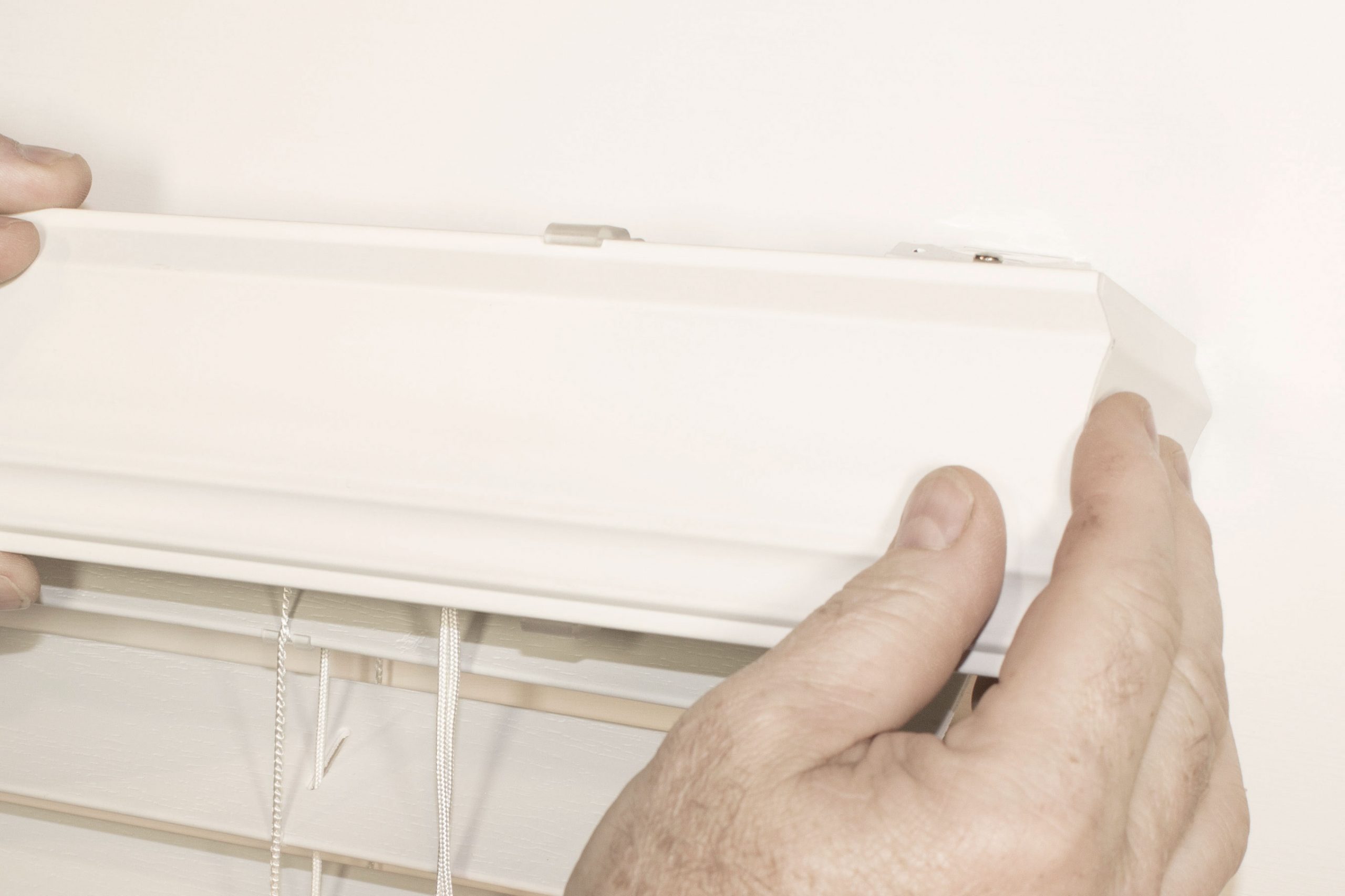

Snap top of valance into clip, then rotate bottom into clip.

3. Snap top of valance into clip, then rotate bottom into clip.

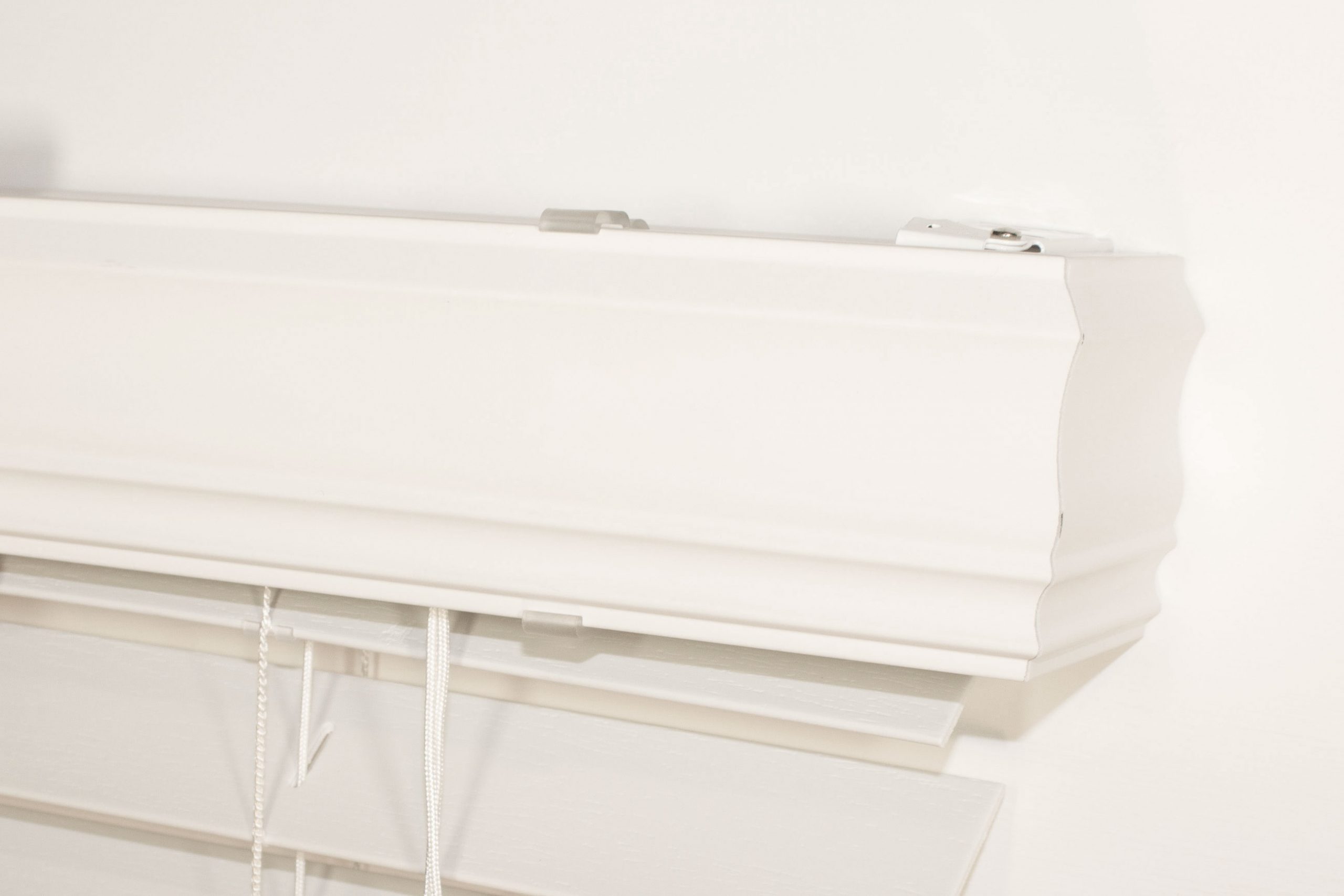

Slide horizontally to adjust if necessary.

4. Slide horizontally to adjust if necessary.

Royal and Façade Faux Wood – ½” Side Return

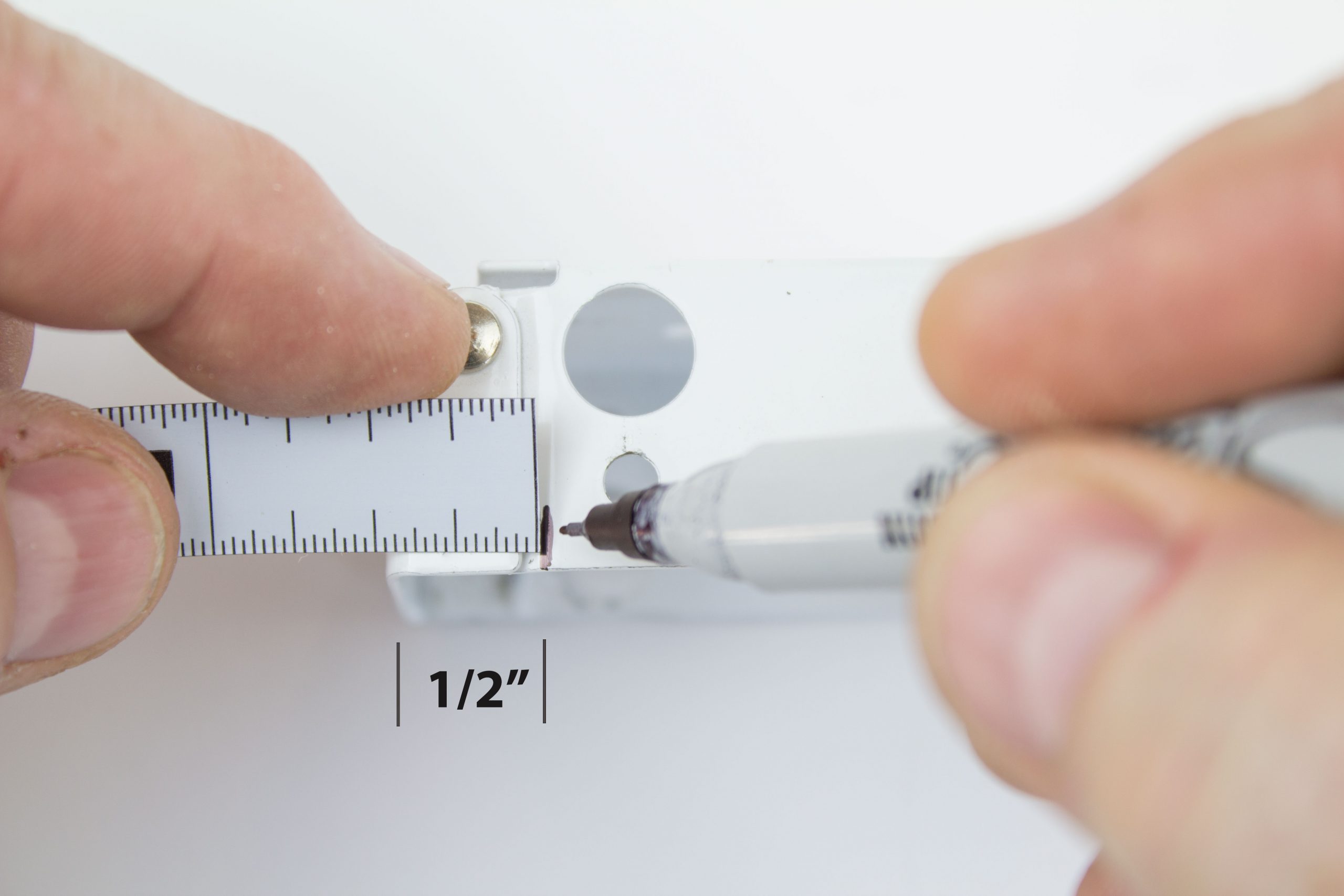

Mark ½” from Front of Bracket.

1. Mark ½” from Front of Bracket.

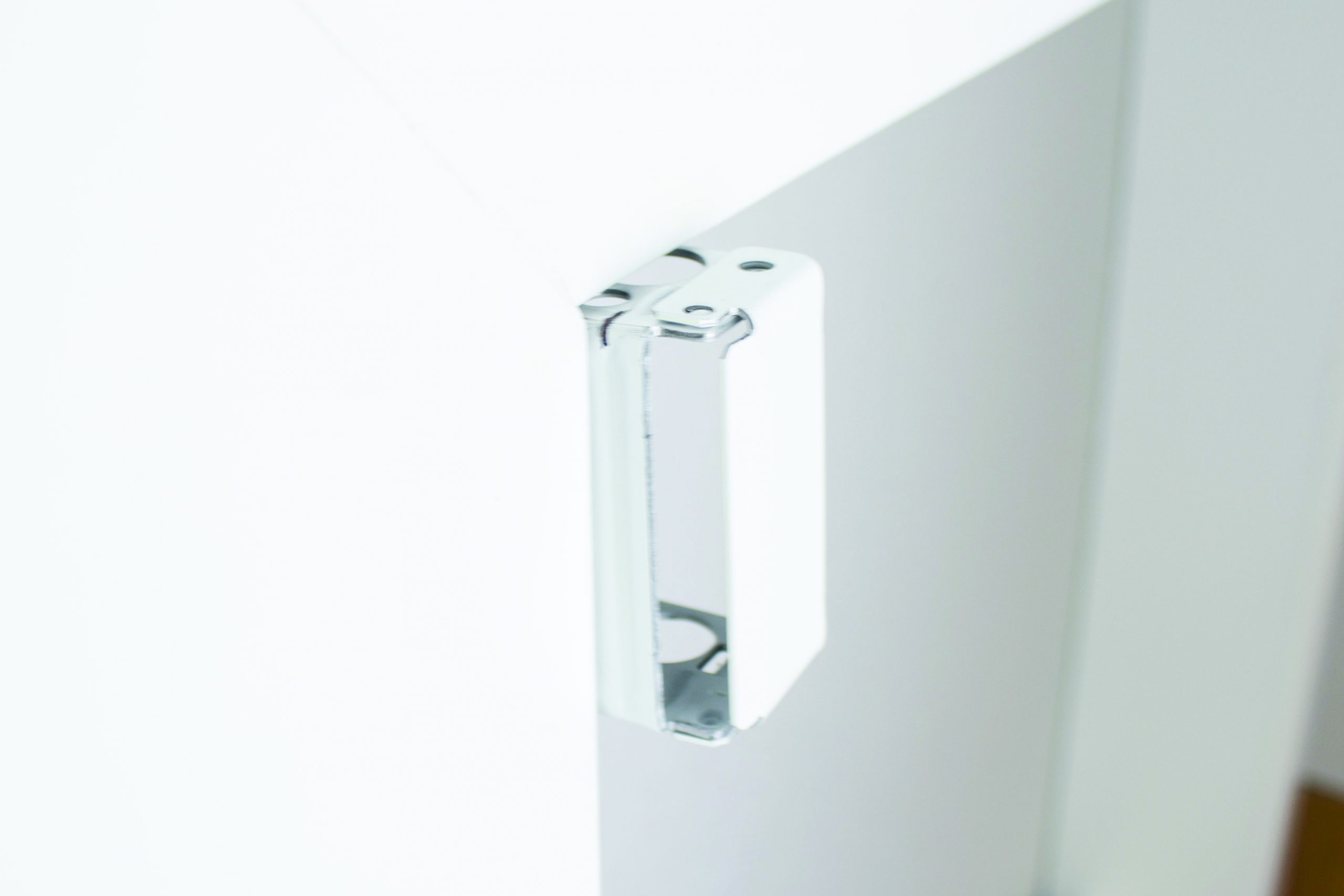

Mount Brackets with Mark at Edge of Wall

2. Mount Brackets with Mark at Edge of Wall

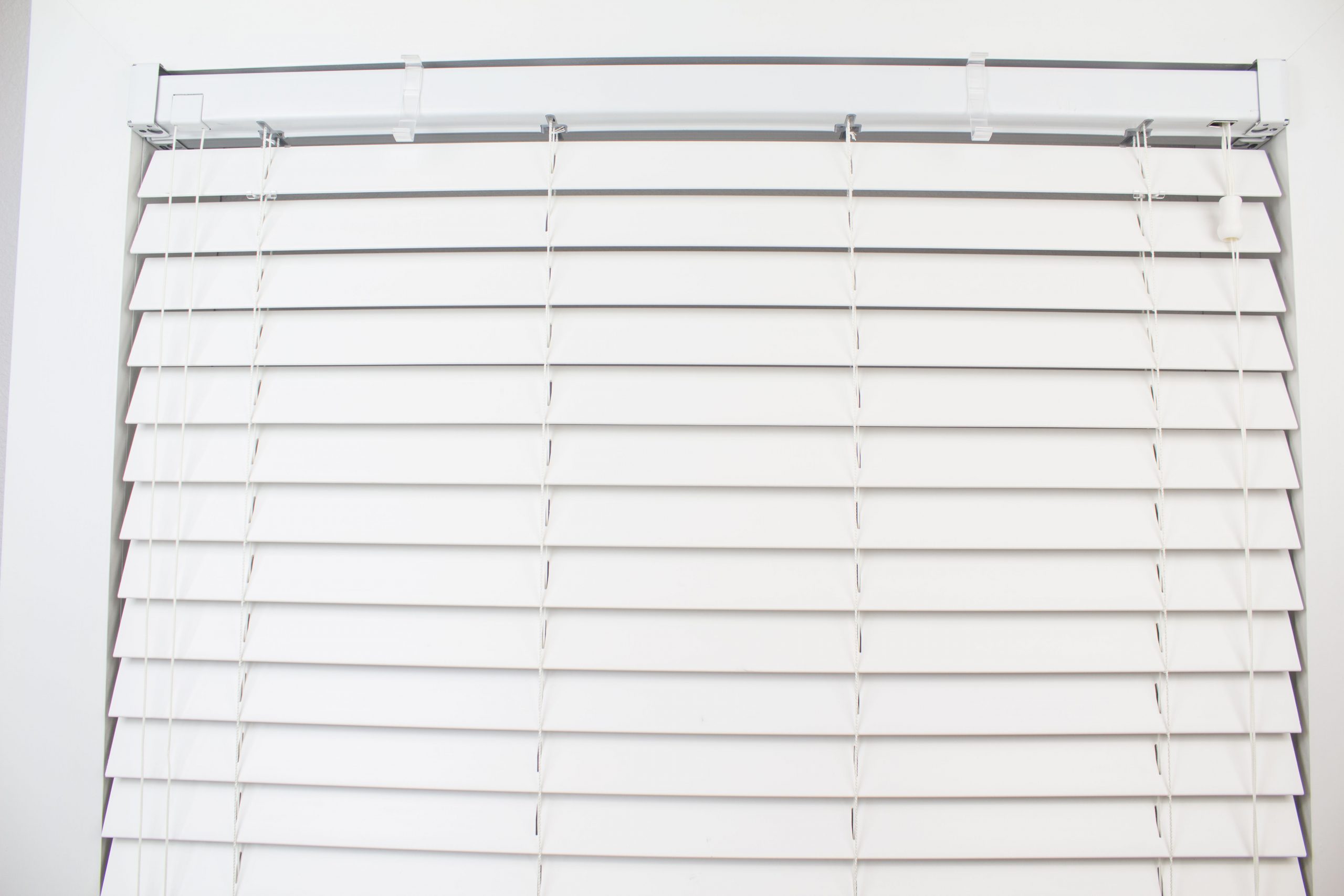

Install Valance Clips and Mount Blind

3. Install Valance Clips and Mount Blind

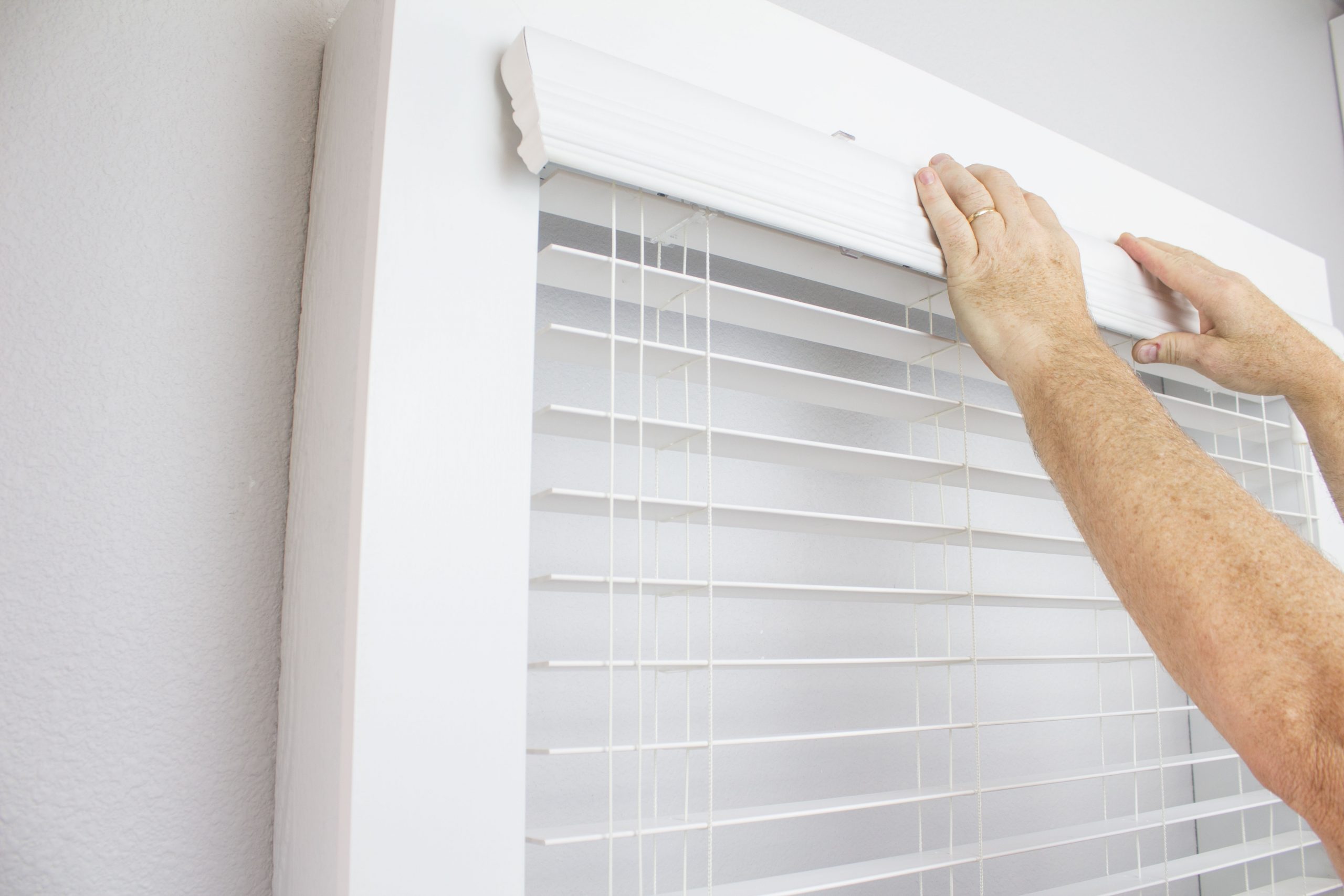

Mount Valance

4. Mount Valance

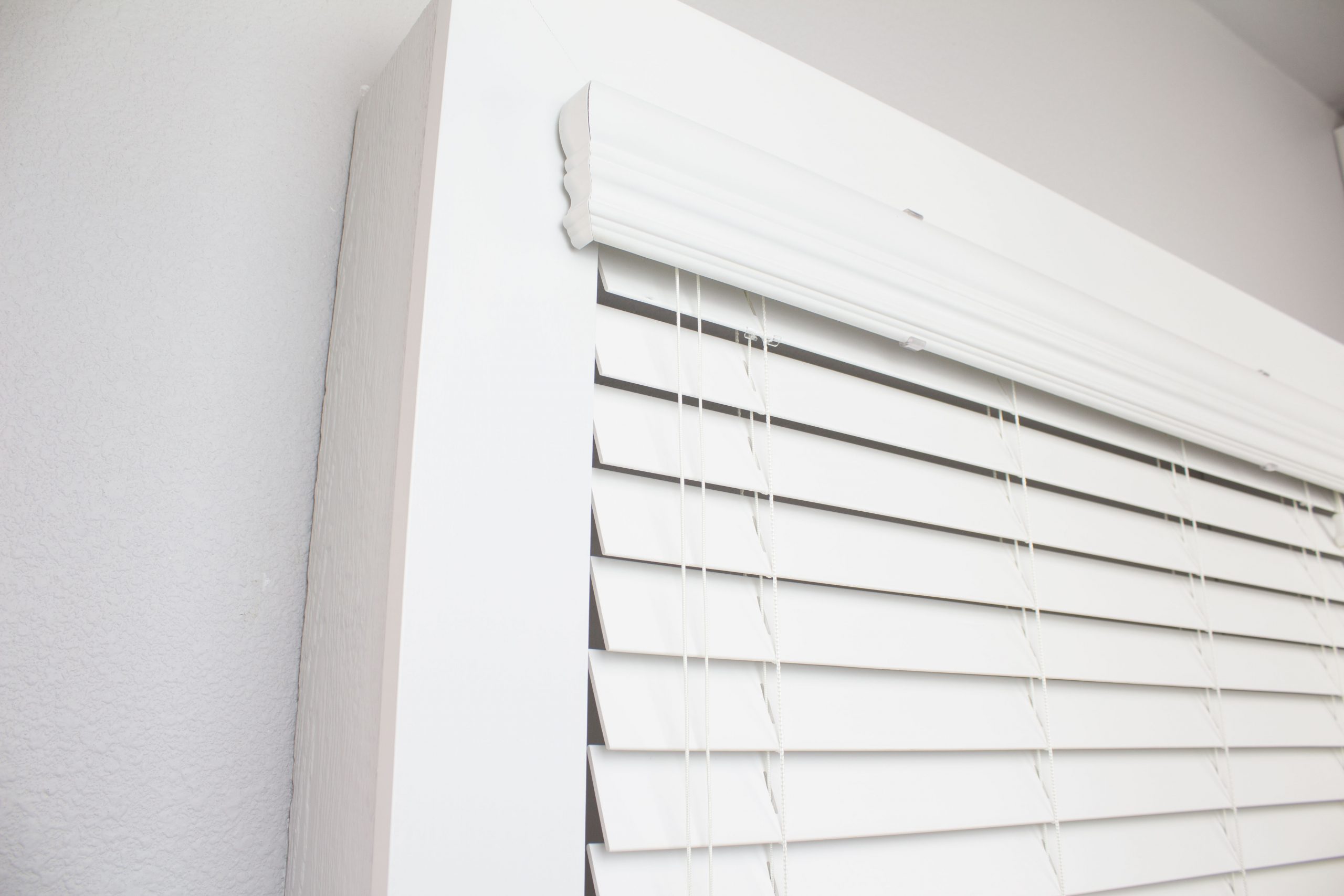

C-clip Mounted with ½” Side Return

5. C-clip Mounted with ½” Side Return

Hidden Clip (Royal Faux Wood Only)

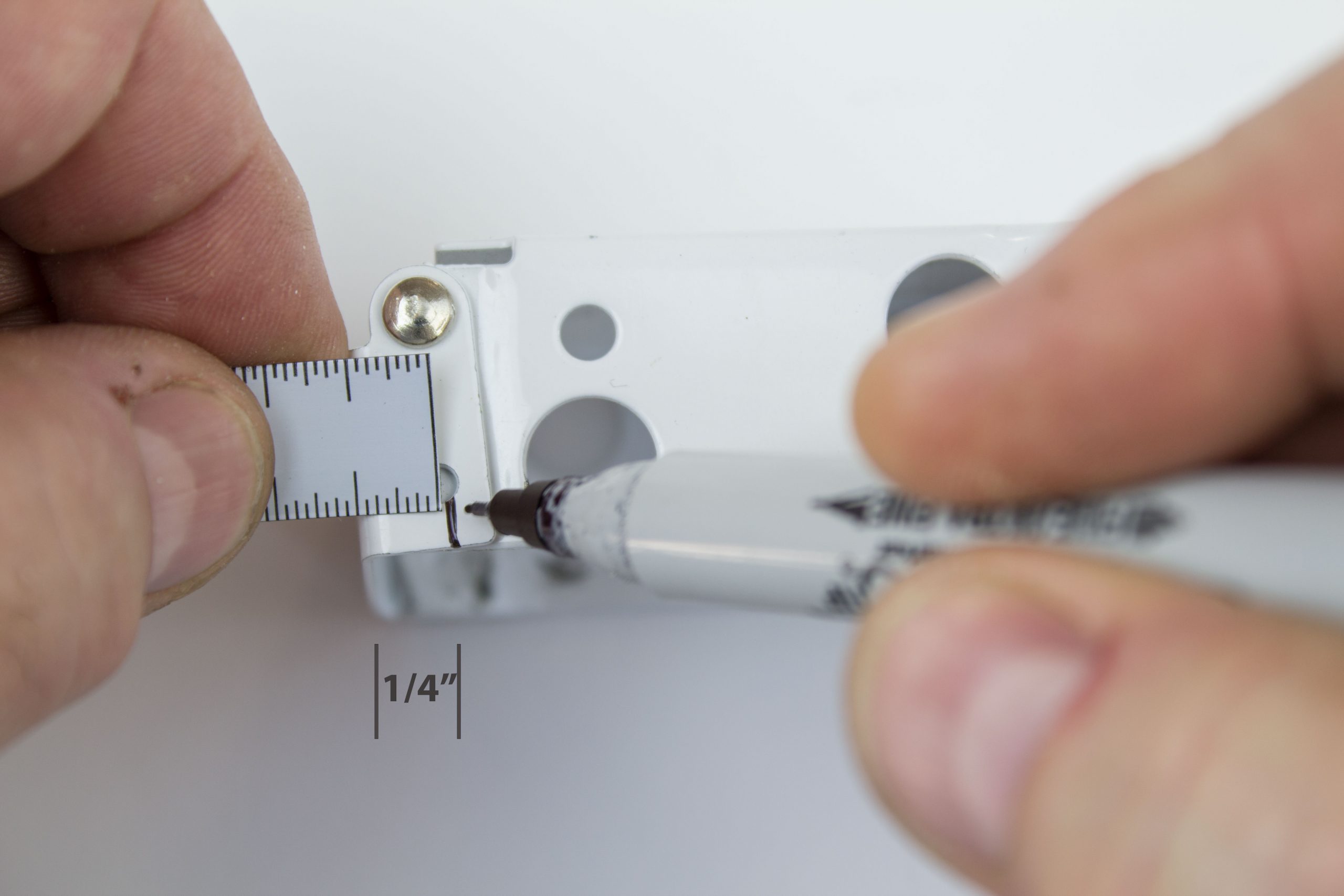

Mark ¼” from Front of Bracket

1. Mark ¼” from Front of Bracket

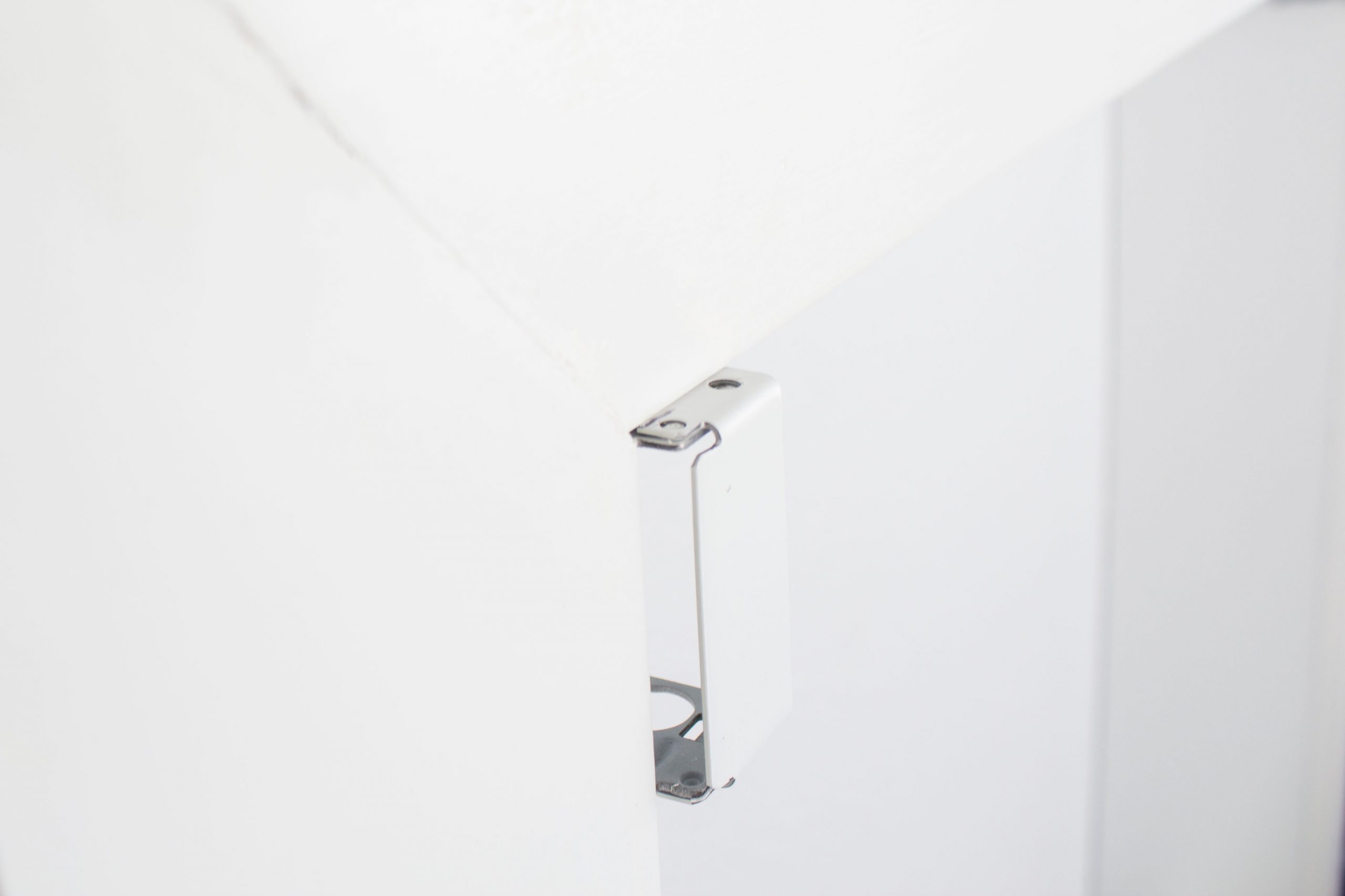

Mount Brackets with Mark at Edge of Wall

2. Mount Brackets with Mark at Edge of Wall

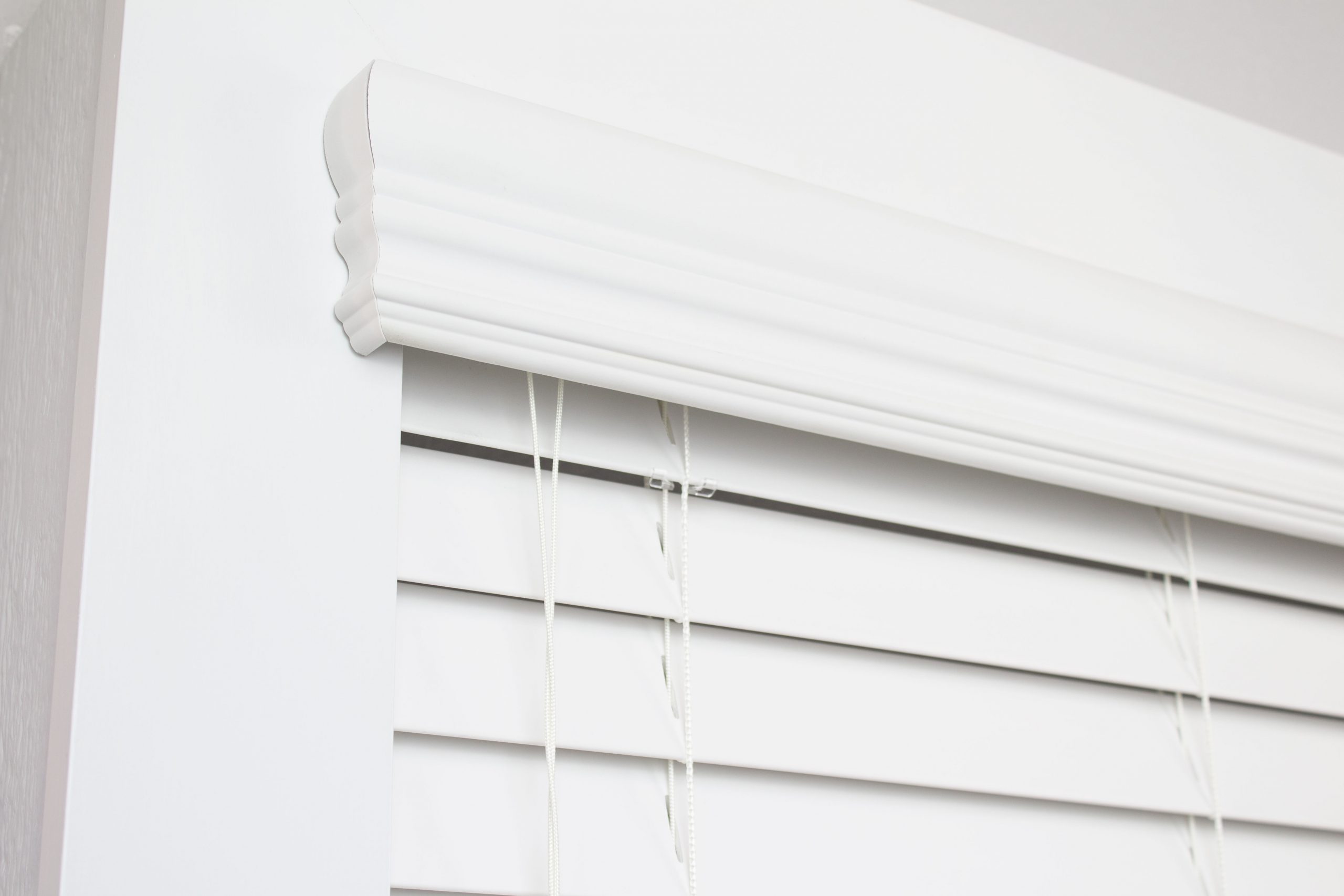

Mounted with ½” Side Return

3. Mounted with ½” Side Return
